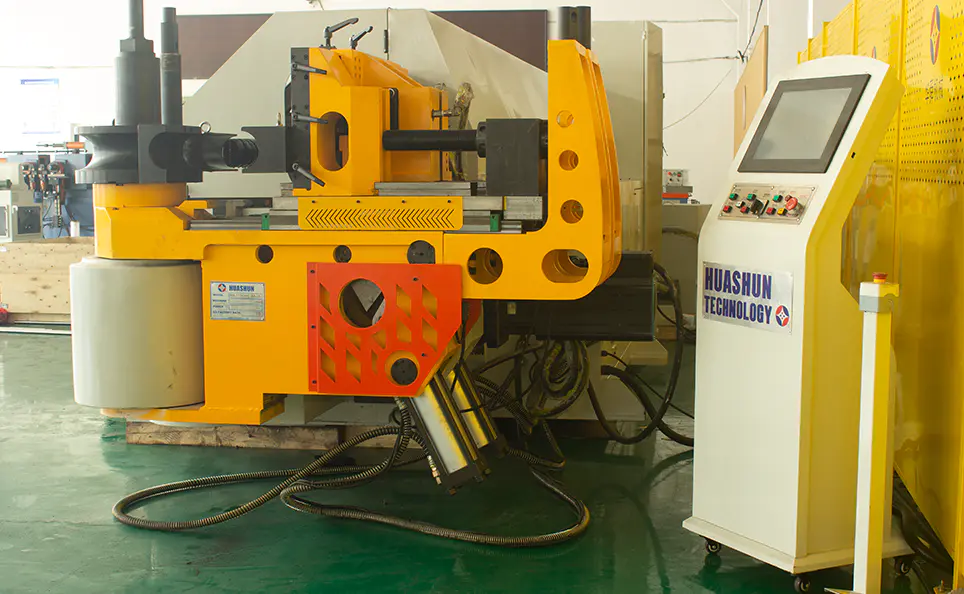

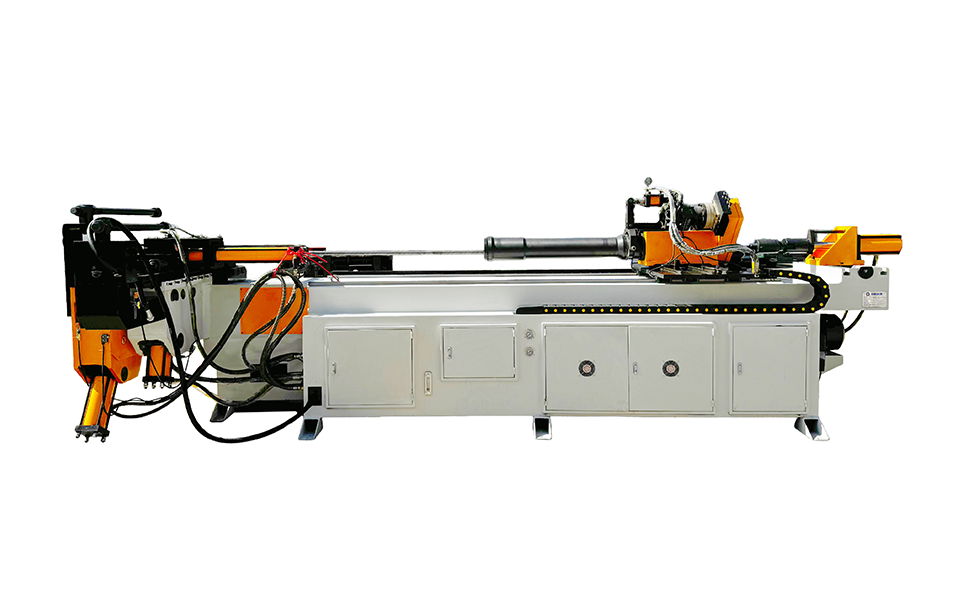

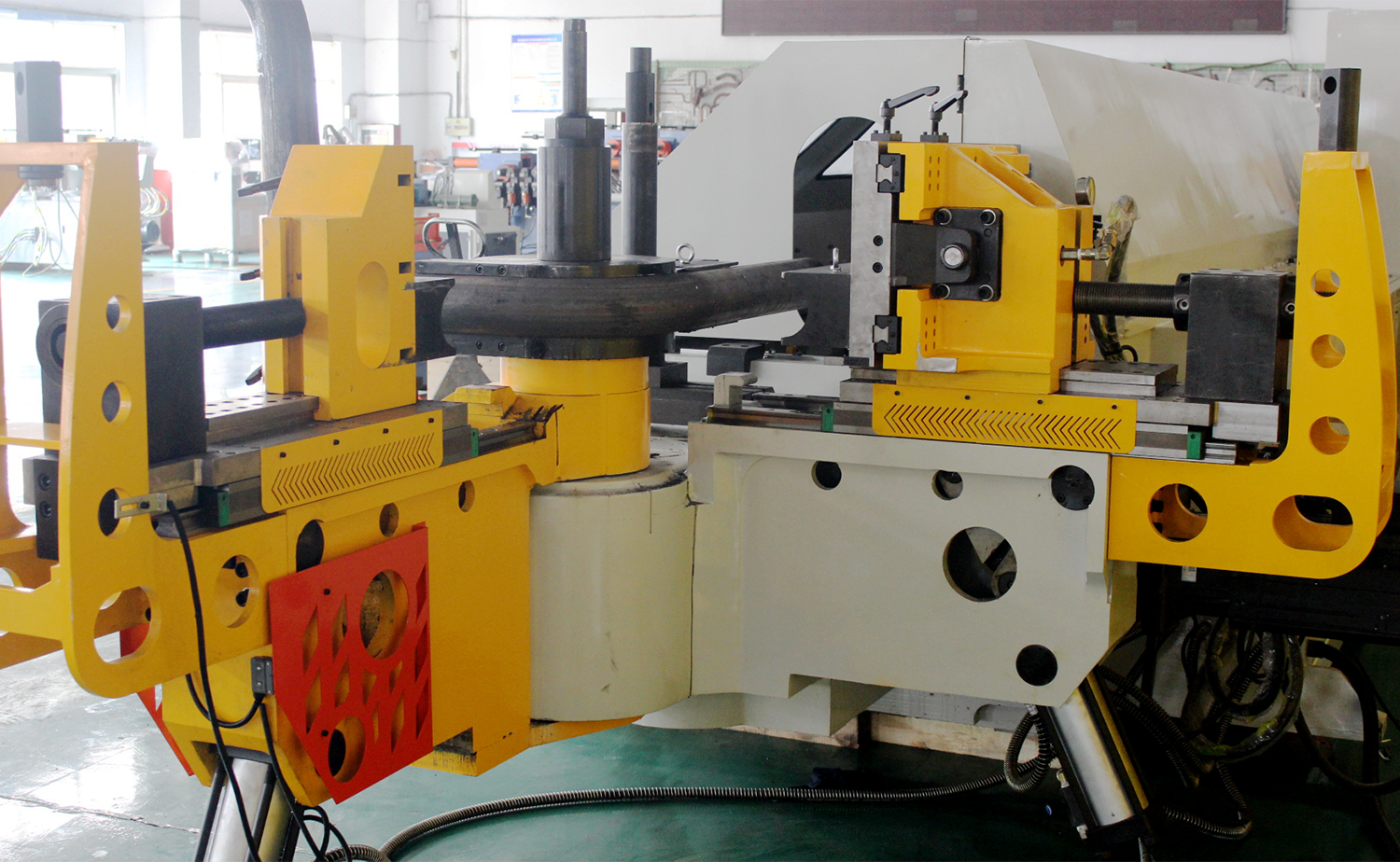

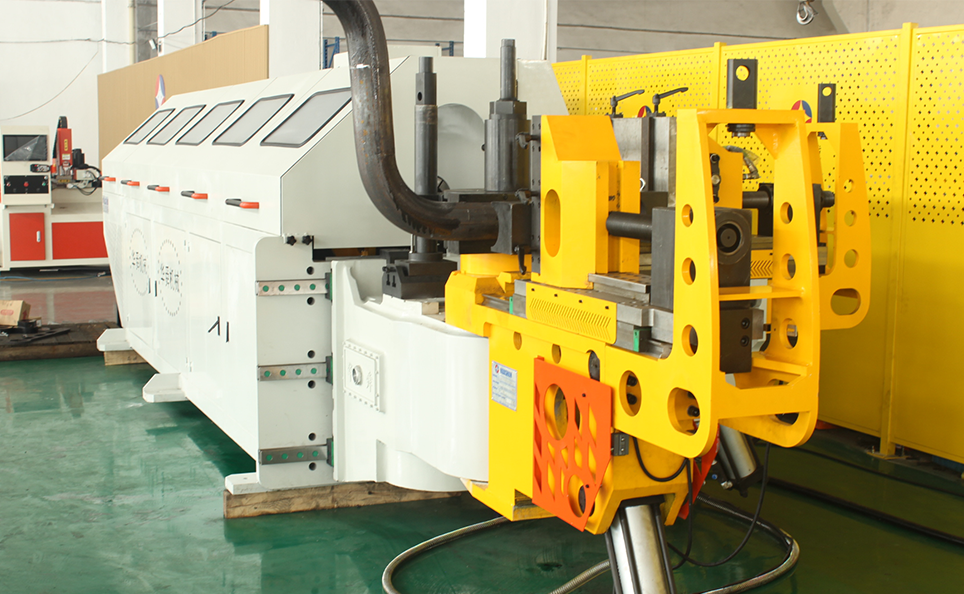

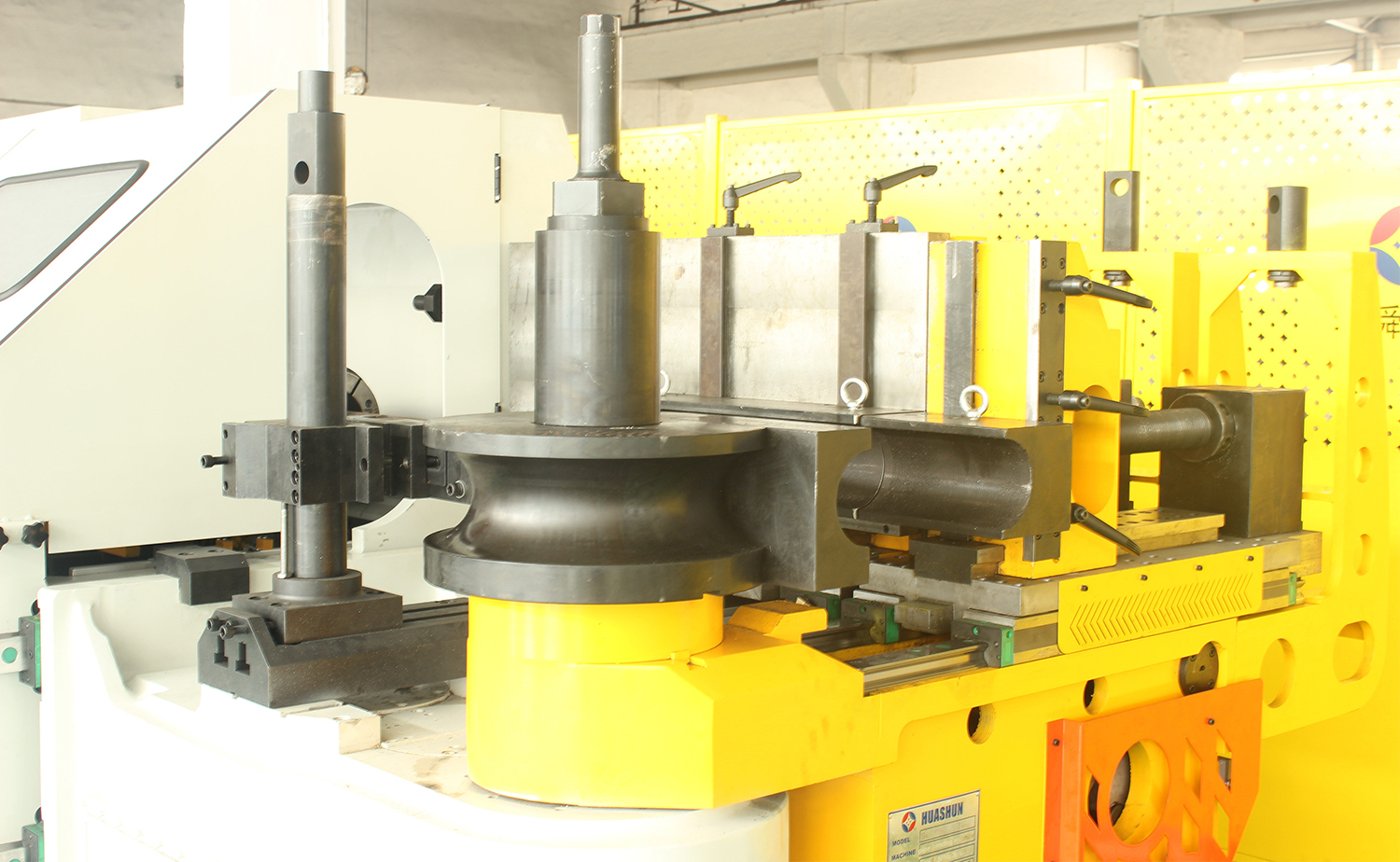

Name: CNC M Series Automatic Multi-Radius Tube Machina
Brand: Zhangjiagang HuaShun Machinery Manufacture Co.,Ltd.

Subtilitas et Imperium

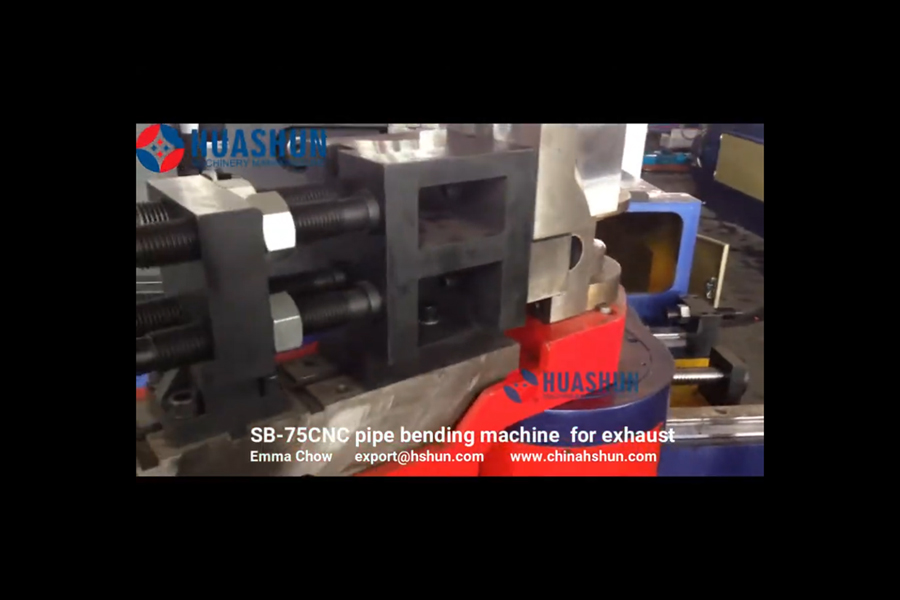

SB-75CNC cost-efficax est, plene automatic fistulam flexuram machinam quae altam praecisionem inflexionem praebet. Eius tres axes programmabiles, a motoribus servo alendis et gyrationis adhibitis, accurate curent flexionem pro varia materia.

Flexibile flexionis Options

Machina duos modos flexiones praebet: fistulam hydraulicam in applicationes generales et in tubum servo CNC flecto ad imperium et accurationem progressam. Hydraulica pressione mori adiuvat adiuvat conservationem inflexionis qualitatem constantem in processu.

Lubricatio et Sustentacionem

Mandrel lubricationis ratio minuit frictionem et indumentum, operando lenis, operationem efficientem. Systema unctio centralised lubricat omnia membra mobilia, adiuvans ut machinam nonumy diutius sustineat.

Temperature Imperium ac User interface

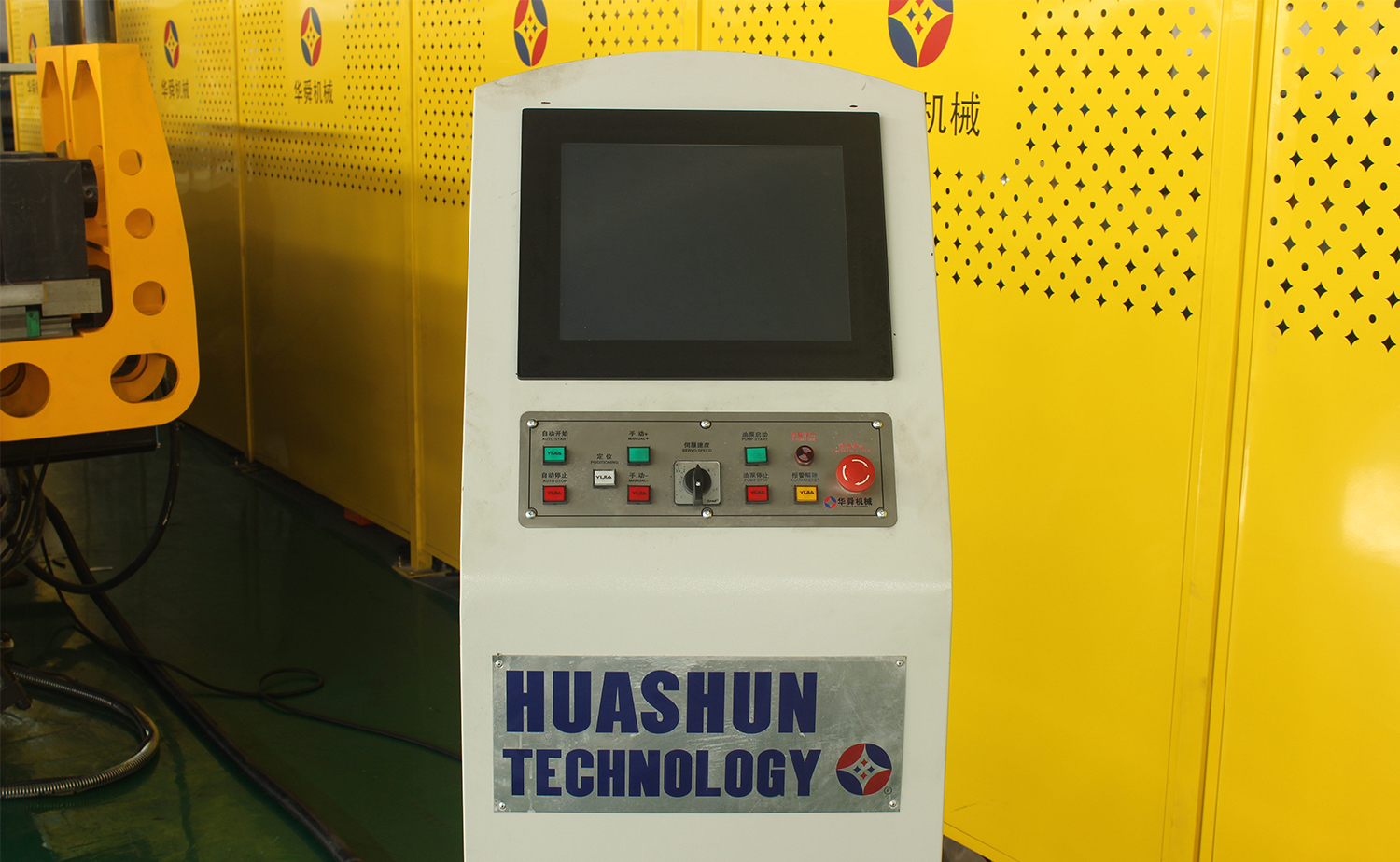

Instructus arcae electrico refrigerando ventilabro, SB-75CNC optimam observantiam praestat conservando temperaturam convenientem. Tactus screen PLC systema intuitivam instrumenti ad facilem machinam continentem et vigilantiam praebet.

Exemplar	SB-75CNC	SB-89CNC	SB-115CNC	SB-133CNC	SB-168CNC
Mitis Steel	75×4.0 t	89×6.0 t	115×8.0 t	133×12 t	168×14 t
Diver	65×2.5 t	76×3.0 t	100×3.0 t	125×3.0 t	145×6.0 t
Maximilianus. Recta Pipe	63×3.0 t	65×3.5 t	100×3.5 t	125×3.5 t	145×6.0 t
Maximilianus. Radius tendentes	350 mm	400 mm	450 mm	500 mm	800 mm
Maximilianus. Angulus inclinatus	190°	190°	190°	190°	190°
Maximilianus. Effective Mandrel Longitudo	2800 mm	3000 mm	3500 mm	3500 mm	3000 mm
curvus Accuracy	±0.1°	±0.1°	±0.1°	±0.15°	±0.15°
inflexio celeritatis	90 mm/s	80 mm/s	50 mm/s	30 mm/s	15 mm/s
Pascentium Cura	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°
Pascentium Celeritate	950 mm/s	900 mm/s	800 mm/s	600 mm/s	350 mm/s
gyrationis Accuracy	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°
Mobilitate gyrationis	165 mm/s	150 mm/s	120 mm/s	100 mm/s	100 mm/s
Maximilianus. Radius tendentes Difference	70	75	80	100	120
